Micro 5-hole probe anemometer

Micro 5-hole probe anemometer
Micro 5-hole probe anemometer
Micro 5-hole probe anemometer
Micro 5-hole probe anemometer
Micro 5-hole probe anemometer

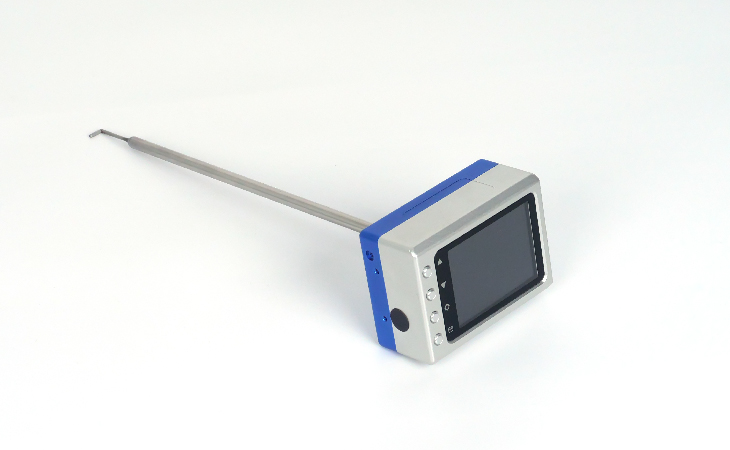

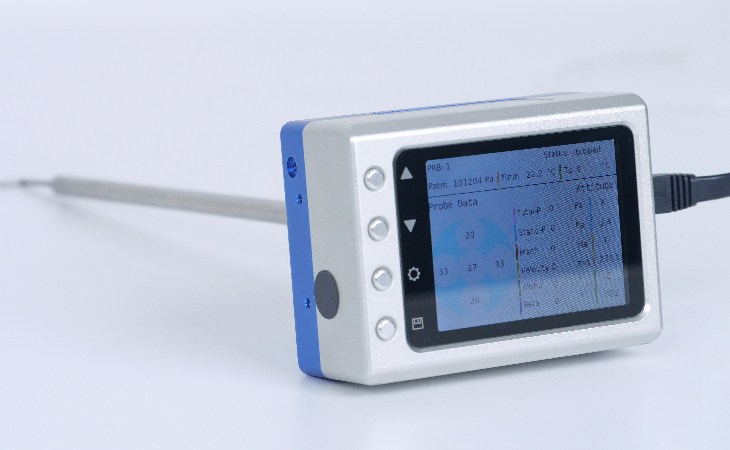

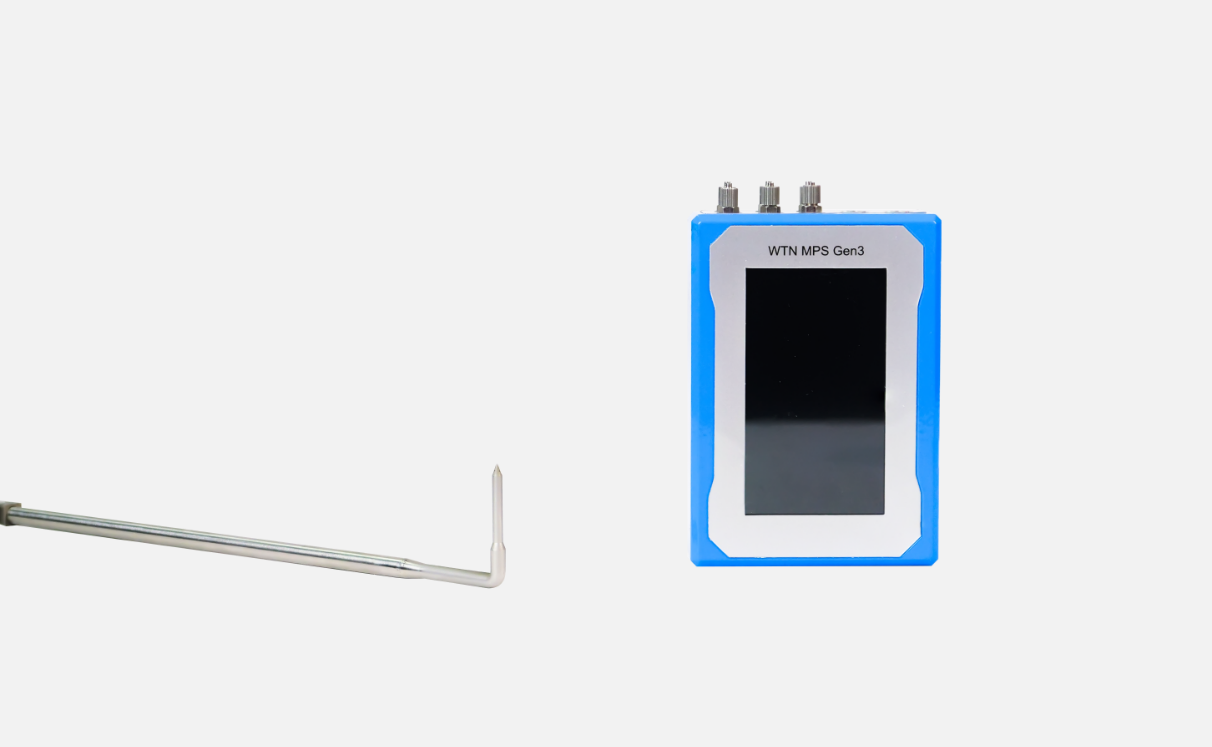

The WINDTUNER Micro 5-Hole Probe Anemometer (WTN MPS) is a compact and lightweight device for measuring airlow pressure,velocityand direction,with built-in advanced algorithmsfor 5-hole probes.Itis characterised by high accuracy,stability,and performance,mainly used for flow field tests such as aircrat attitude and velocity tests,impeller mechanical flow tests,and wind tunnel tests.

High precision

Full of functions

Compact in size

Strong modular compatibility

Contact us now

Technical data

Product parameters

Power supplyPOE power suply ; (6~18)V wide range power supply

Working temperature range(0~60)℃

Storage temperature range(-20~70)℃

Working environment humidityRelative humidity <90%,non-condensing

Pressure synthesis accuracylevel0.1,level0.5

Product parameters

Sensor modules5 pressure modules+1ambien pressure module 1ambient temperature module+1 triaxial gyroscope

Ambient pressure module(30~120)kPa(a),Maximum Permissible Error:±0.1%FS

Ambient temperature module(-45~130)℃,Maximum Permissible Error:±0.3℃

Sampling frequency≤30HZ(support for self-defined adjustment by users)

CommunicationAdaptive 10/100M Ethernet with UDP/IP protocols

Product Gallery

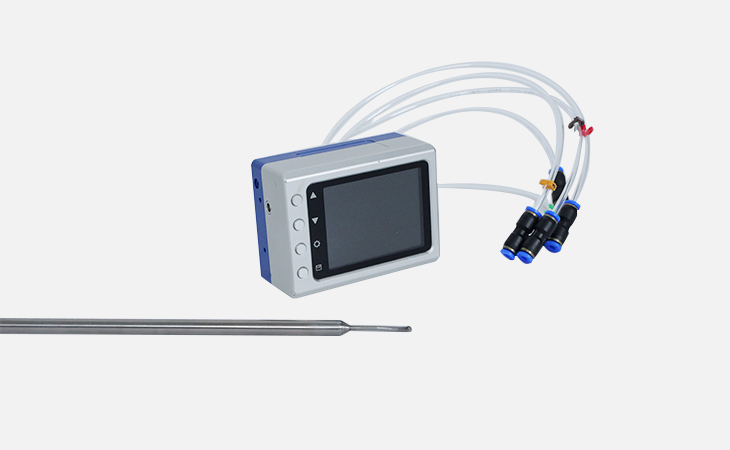

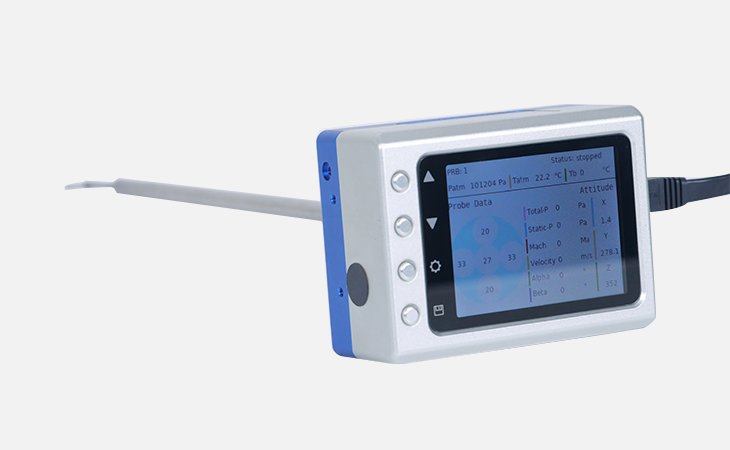

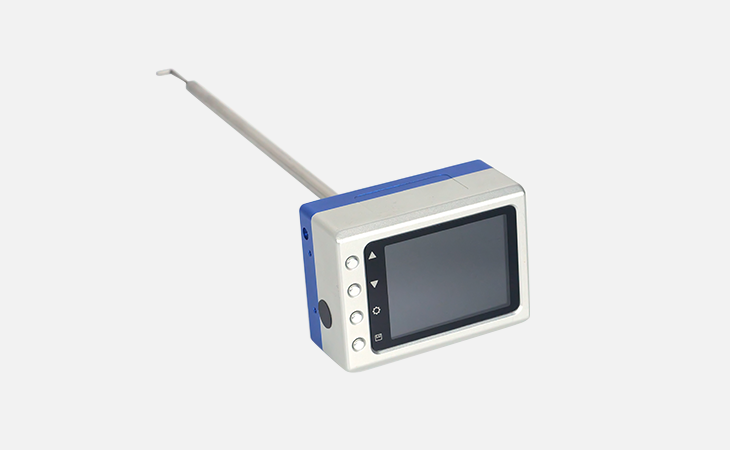

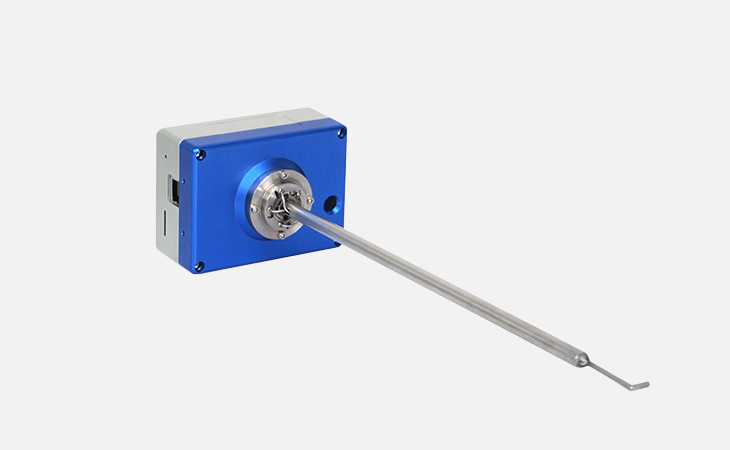

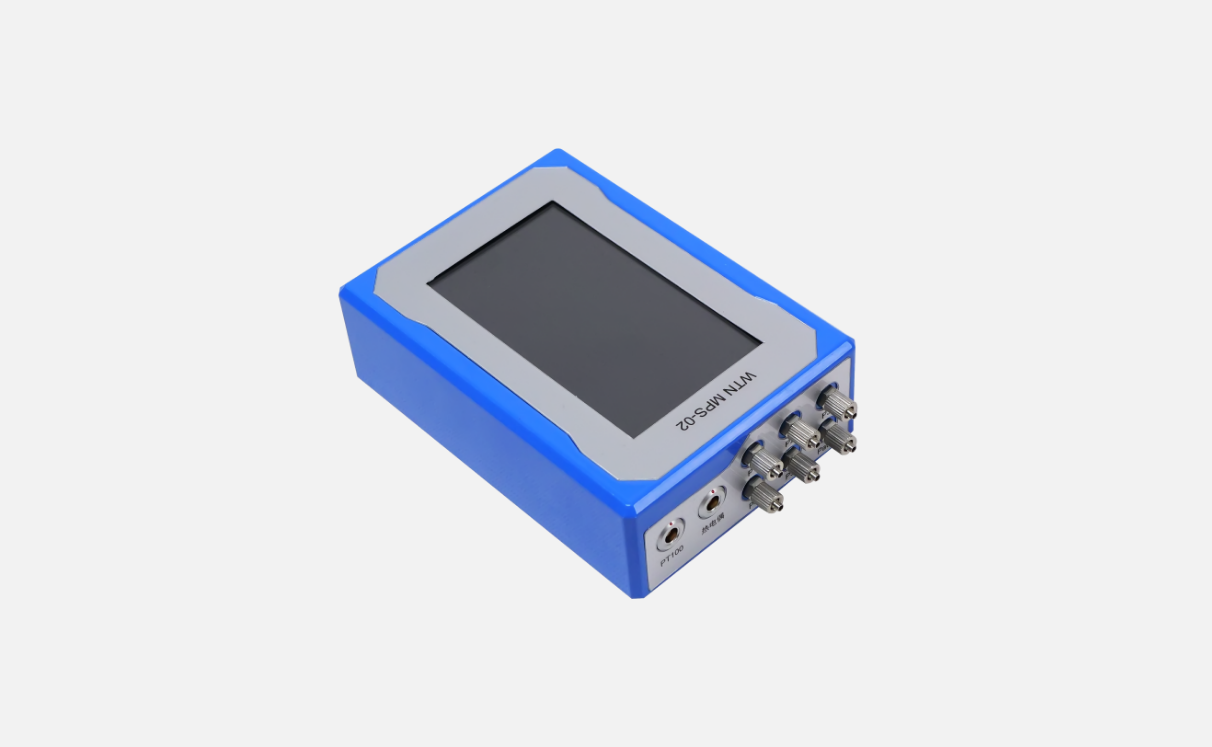

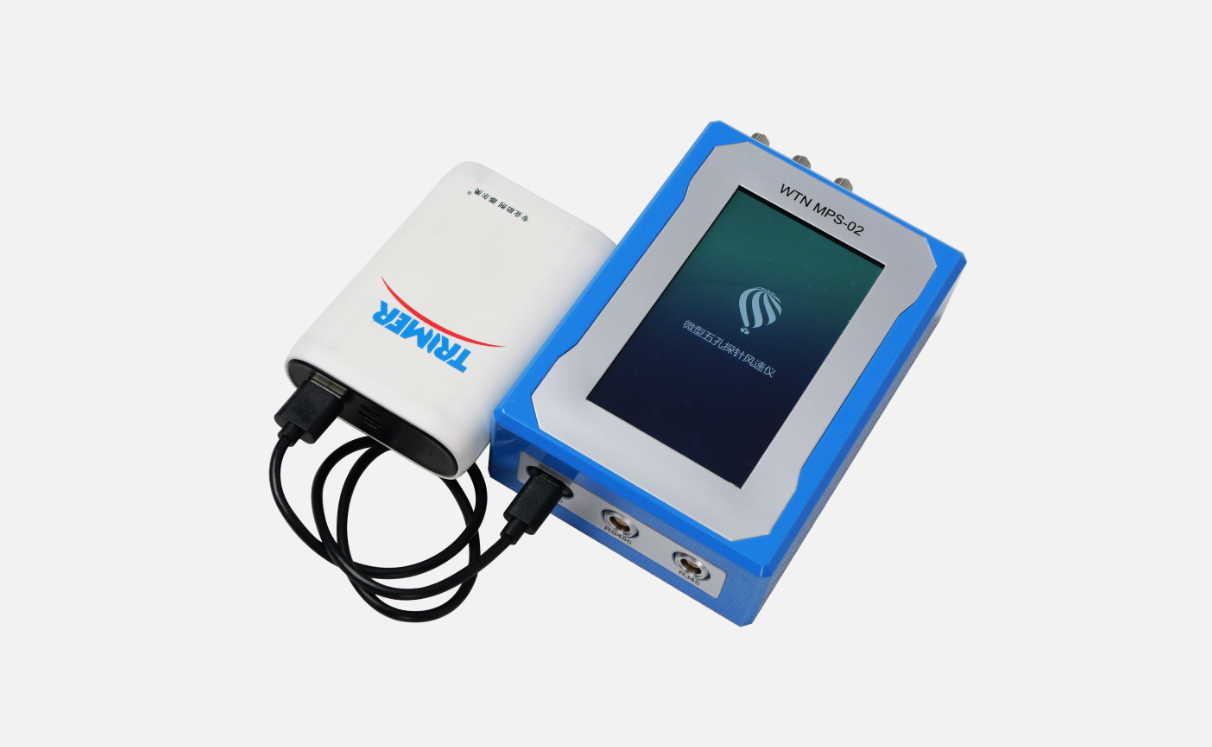

  • Micro 5-hole probe anemometer
    Micro 5-hole probe anemometer
    Micro 5-hole probe anemometer
    Micro 5-hole probe anemometer
Micro 5-hole probe anemometer

Micro 5-hole probe anemometer

High precision

The velocity accuracy is better than 1m/s
The angular accuracy is better than±1°
Pressure comprehensive accuracy better than 0.5%FS



Full of functions

Calibrated in standard wind tunnels allowing measurement of total pressure,static pressure,wind speed,airflowangle,atmospheric pressure,atmospheric temperature,and position information.


Compact in size

Compact,simple operation,convenient on-site measurement,real-time display,acquisition and storage of bothhardware and software.


Strong modular compatibility

Parallel connection of multiple devices and software compatibility with motion control system enable fullyautomated acquisition of the 3D flow field.
